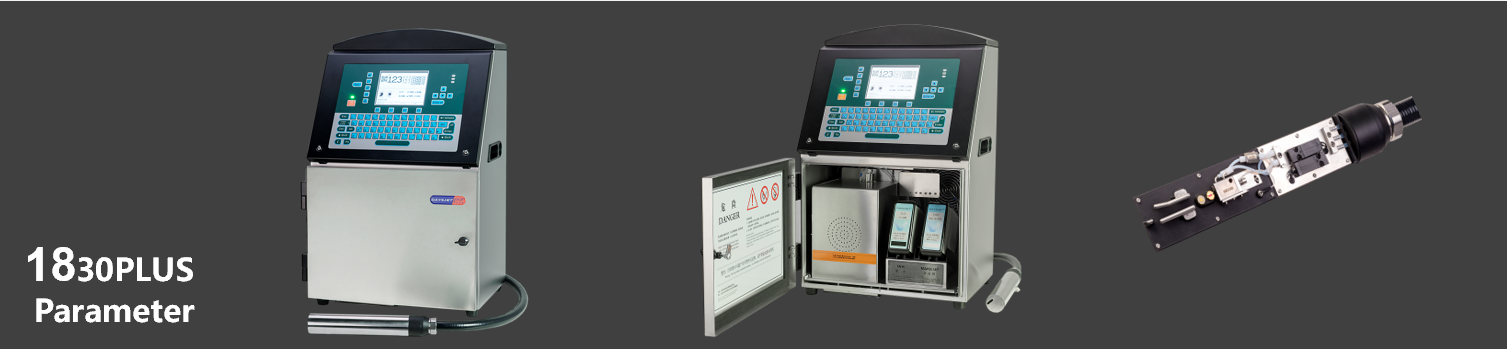

Continuous inkjet printer    DAYSJET 1830PLUS

DAYSJET 1810(图1)

Stable, efficient, economic, enhance more value for customers


DAYSJET 1830PLUS Continuous inkjet inkjet machine can maximize production efficiency, not only suitable for daily shift inkjet printing customers, but also suitable for intermittent production customers, powerful function and high stable performance bring more value to customers


System features

■ FPJA high integrated circuit

■ The modular design of circuit and ink system makes the operation

   more stable

■ Easy editing, parameter setting and logo backup

■ The addition of ink solvent is more convenient and fast

■ No ink core design, easy maintenance and saving

■ The machine can be automatically cleaned on and off, even if it is

   parked for a long time, there is no need for human intervention.

■ Power off protection function, even if the power is suddenly off, the

   ink will not overflow from the nozzle.

■ Maintenance reminder

   Software features

   ■ Dynamic compensation technology DSC, accurate

      ink point, beautiful font.

   ■ Intelligent opening nozzle function

   ■ What you see is what you get in the editing interface

   ■ 100 pieces of information storage

   ■ Information and pictures can be tested by USB.

   ■ User defined font library, which can meet different

      requirements of users

   ■ Support Chinese, English and other languages




Daysjet 1830(图2)

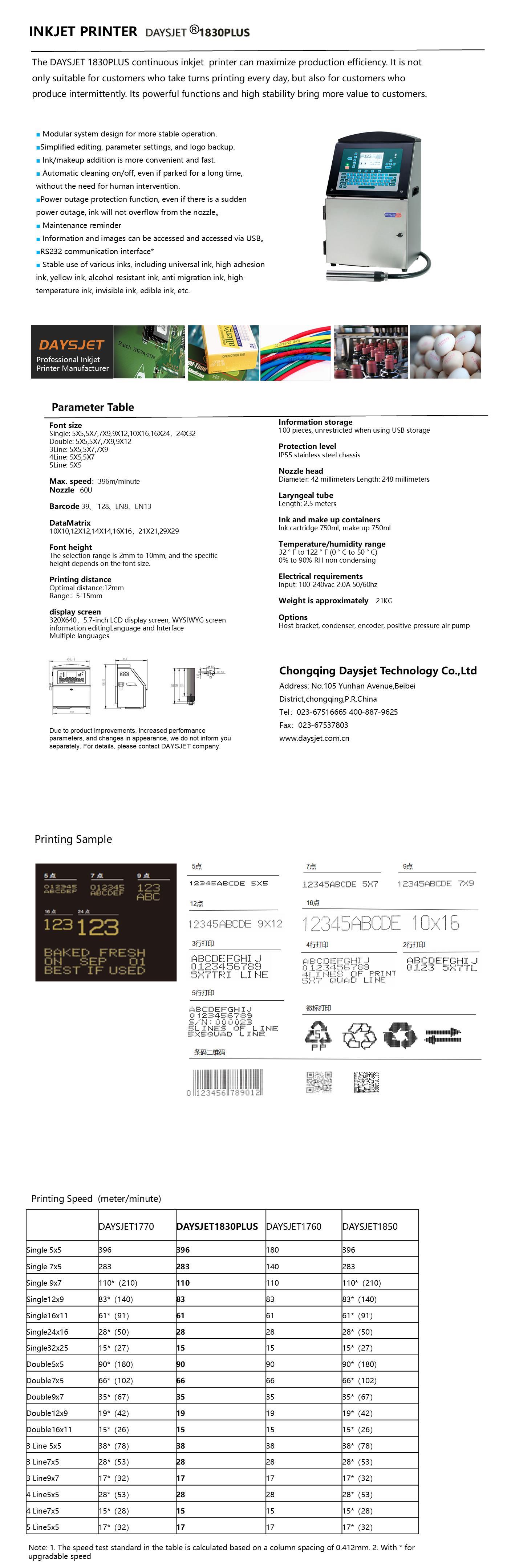

Font lattice

1 Row: 5X5,5X7,7X9,9X12,10X16,16X2424X32

2 Row: 5X5,5X7,7X9,9X12

3 Row: 5X5,5X7,7X9

4 Row: 5X5,5X7

5 Row: 5X5


Maximum speed396m/min


Nozzle diameter  60U


Linear bar code Code39  Code128


DataMatrix

10X10,12X12,14X14,16X1621X21,29X29


Character height

Selection range 2-10mm,The specific height depends on the font lattice


Jet printing distance

Best distance12mm

Range:5-15mm


Keyboard

Film keyboard with tactile feedback


Display screen

320X640,Bright blue backlight, 5.7 "LCD

Screen information editing of WYSIWYG


Language and interface

Chinese, English and many languages


Information storage

USB storage is not limited to 100


Protection level

IP55 stainless steel case


Nozzle

Diameter: 42 mm length: 248 mm


Nozzle throat

Super flexible, length: 2.5m


Ink and solvent containers

Ink cartridge 700ml solvent 700ml


Temperature / humidity range

32°F  - 122°F(0°C - 50°C)

0% - 90% RH Non condensing


Electrical requirements

50/60 Hz.、220V/125W


Approximate weight   35KG


Options

Support of main engine, condenser, positive pressure alarm


Daysjet 1830(图3)


Printing ink


Standard ink

General purpose ink, stable; suitable for spray printing on

the surface of most products, with good adhesion and

excellent shrinkage.


Special ink

High attachment ink, yellow ink, anti alcohol ink, anti

migration ink, high temperature ink, invisible ink, edible ink, red ink, blue ink and other ink stable use.


DAYSJET 1810(图4)
