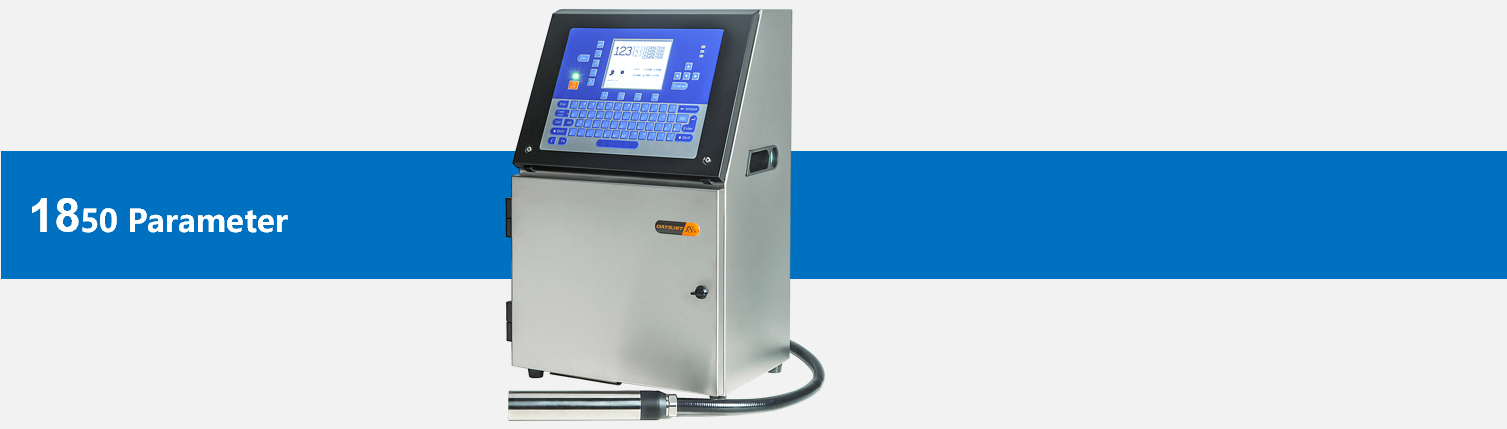

Pigment inkjet printer DAYSJET 1850
White ink, yellow ink in the dark surface more eye-catching.
DAYSJET 1850 For the application of printing readable variable data coding on the surface of dark or hard to identify materials, high contrast pigment ink is used to print bright and clear coding on the surface of materials (such as colored glass, rubber tube, plastic cable and dark cardboard) where dye ink does not work. It can print different fonts in many languages, bar codes, 2D DataMatrix codes, customized logos and graphics.
System features ■ FPJA high integrated circuit ■ The modular design of circuit and ink system makes the operation more stable ■ Easy editing, parameter setting and logo backup ■ The addition of ink solvent is more convenient and fast ■ No ink core design, easy maintenance and saving ■ The machine can be automatically cleaned on and off, even if it is parked for a long time, there is no need for human intervention. ■ Power off protection function, even if the power is suddenly off, the ink will not overflow from the nozzle. ■ Maintenance reminder | Software features ■ Dynamic compensation technology DSC, accurate ink point, beautiful font. ■ Intelligent opening nozzle function ■ What you see is what you get in the editing interface ■ 100 pieces of information storage ■ Information and pictures can be tested by USB. ■ User defined font library, which can meet different requirements of users ■ Support Chinese, English and other languages |

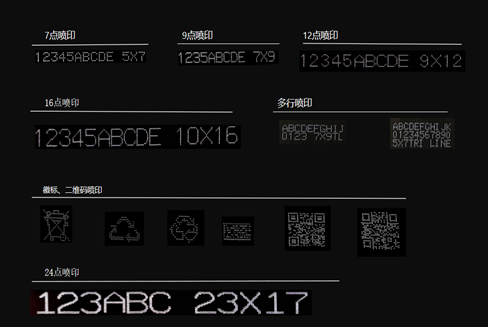

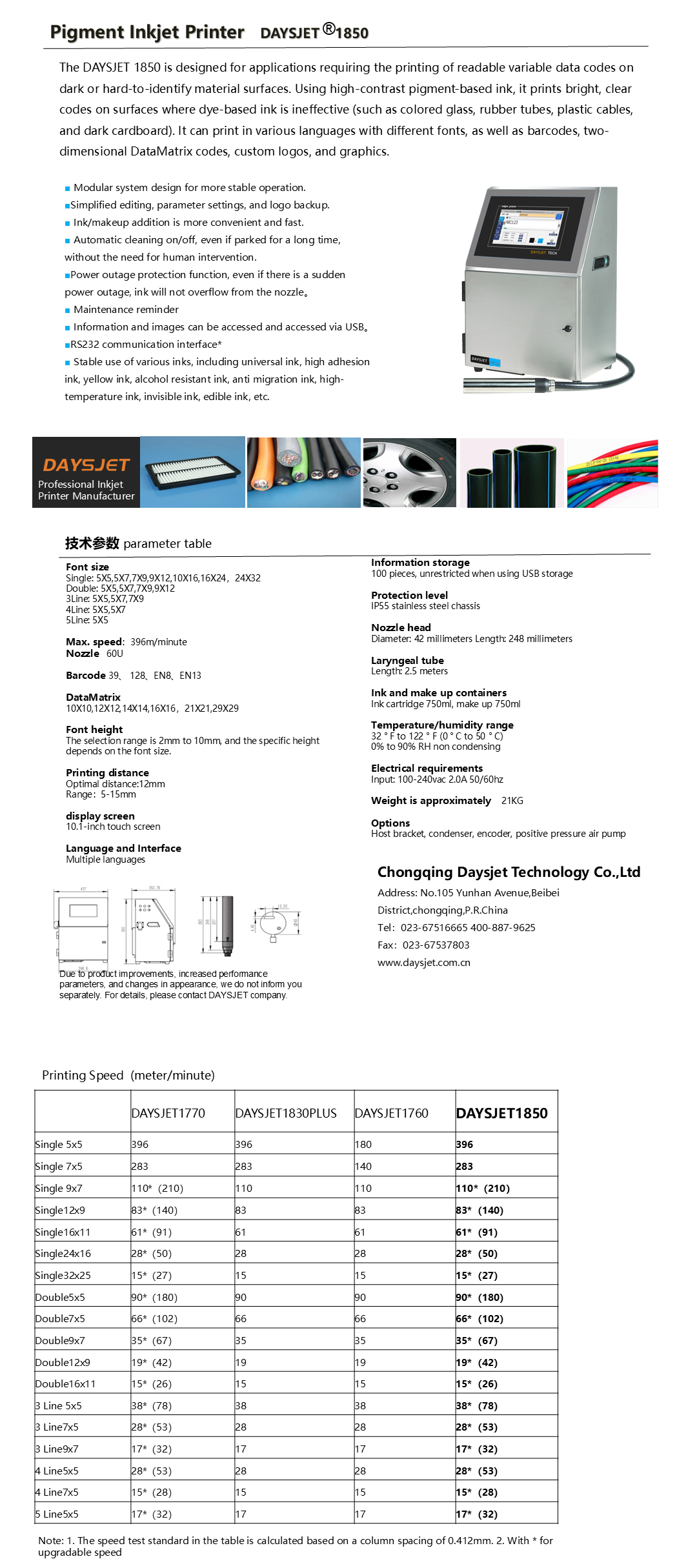

Font lattice 1 Row: 5X5,5X7,7X9,9X12,10X16,16X24，24X32 2 Row: 5X5,5X7,7X9,9X12 3 Row: 5X5,5X7,7X9 4 Row: 5X5,5X7 5 Row: 5X5 Maximum speed：396m/min Nozzle diameter 60U Linear bar code Code39 Code128 DataMatrix 10X10,12X12,14X14,16X16，21X21,29X29 Character height Selection range 2-10mm,The specific height depends on the font lattice Jet printing distance Best distance12mm Range：5-15mm Keyboard Film keyboard with tactile feedback Display screen 320X640，Bright blue backlight, 5.7 "LCD Screen information editing of WYSIWYG | Language and interface Chinese, English and many languages Information storage USB storage is not limited to 100 Protection level IP55 stainless steel case Head Diameter: 42 mm length: 248 mm Nozzle throat Super flexible, length: 2.5m Ink and solvent containers Ink cartridge 700ml solvent 700ml Temperature / humidity range 32°F - 122°F（0°C - 50°C） 0% - 90% RH Non condensing Electrical requirements 50/60 Hz.、220V/125W Approximate weight 35KG Options Support of main engine, condenser, positive pressure alarm |
Printing ink ■ White ink, yellow ink, stable; suitable for jet printing on the surface of dark products, with good adhesion and excellent shrinkage . |  |
